Why Digmesa for industrial use?
Our flowmeters are integrated in industrial appliances worldwide, delivering consistently reliable results and a permanent quality, all at a prompt availabilty. We are flexible when it comes to customer requests regarding order quantities and adjustable production processes in terms of financial viability.
Typical applications

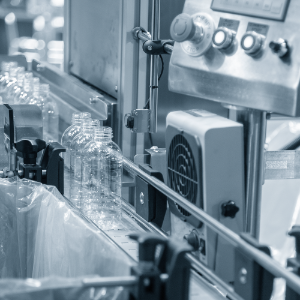

Solid and reliable flow control for bottling and filling plants, in cooling circuits of welding systems, for chlorine addition in swimming pools –with their high chemical and temperature resistance our flowmeters can handle them all, always contributing to saving costly materials and chemicals. Their signal output can be adapted to customer-specific demands, offering current or voltage solutions, M-bus or wireless modules.
FH
Flow
0.04 - 4.20 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
lead-free brass housing
—
high pressure resistance
—
robust design
FH Full Brass
Flow
0.04 - 4.20 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
lead-free brass housing
—
high pressure resistance
—
robust design
FHK PVDF 2 Magnets
Flow
0.04 - 1.93 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
Modular
—
Flexible
—
u-shaped flow path

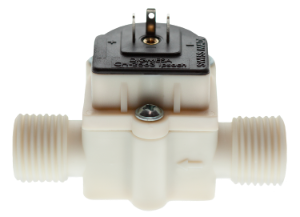

FHKSC PBT
Flow
0.03 - 1.08 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 3.0 bar at 20°C
0 - 44 psi at 68°F
—
compact
—
cost-effective
—
reliable
FHKSC PVDF 2 magnets
Flow
0.03 - 0.80 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 3.0 bar at 20°C
0 - 44 psi at 68°F
—
compact
—
cost-effective
—
reliable
FF
Flow
0.34 - 4.05 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 55.0 bar at 20°C
0 - 798 psi at 68°F
—
freely selectable mounting position
—
can be opened and closed without tools
—
optional foam detection available
EPI PEEK
Flow
0.06 - 5.35 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
positive displacement meter
—
for viscous liquids
—
accurate and cost-effective
Nano Brass FH
Flow
0.04 - 0.99 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
lead-free brass housing
—
compact and robust design
—
flexible mounting position
FHKU
Flow
0.04 - 4.22 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
modular
—
flexible
—
straight flow path
CombiSensor analog
Flow
0.03 - 3.91 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
Measures electrical conductivity, temperature and flow rate
—
Unique
FHKU external LCD
Flow
0.04 - 4.22 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
battery-powered display
—
external LCD
CombiSensor digital
Flow
0.03 - 8.30 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
Measures electrical conductivity, temperature and flow rate
—
Unique
FHK Arnite
Flow
0.03 - 3.19 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
modular
—
flexible
—
u-shaped flow path
Nano Brass FHC AVS Ø6mm
Flow
0.00 - 0.99 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
lead-free brass housing
—
AVS Römer 6mm
—
flexible mounting position
Nano Brass FHC AVS Ø4mm
Flow
0.00 - 0.99 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
lead-free brass housing
—
AVS Römer 4mm
—
flexible mounting position
Nano Inox FH
Flow
0.00 - 4.00 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
stainless steel housing
—
compact
—
robust design
Nano Flex with 30 cm cable
Flow
0.25 - 3.00 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 bar at 20°C
0 psi at 68°F
—
Sealed cable
—
Reliable in demanding applications
—
Cost-effective
EPI Arnite
Flow
0.06 - 5.35 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 7.0 bar at 20°C
0 - 102 psi at 68°F
—
positive displacement meter
—
for viscous liquids
—
accurate and cost-effective
Nano DM60
Flow
0.05 - 0.40 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 5.0 bar at 20°C
0 - 73 psi at 68°F
—
compact
—
cost-effective
—
freely selectable mounting position
FM 15
Flow
2.83 - 25.30 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 12.0 bar at 20°C
0 - 174 psi at 68°F
—
large dynamic range
—
high durability
—
high flow rates
Display FC Pro
Flow
0.00 l/min
Pressure
0.0 bar at 20°C
0 psi at 68°F
—
backlit LCD
—
compatible with all Digmesa flow sensors
—
customizable on request
FHKU John Guest internal LCD
Flow
0.04 - 4.22 l/min
Temp.
1°C to 60°C
34°F to 140°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
John Guest 3/8“ Arnite
—
battery-powered internal LCD
FHKU John Guest
Flow
0.04 - 4.22 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
modular
—
JG Speedfit
—
straight flowpath
EPI-Mini
Flow
0.05 - 2.50 l/min
Pressure
0.0 - 0.6 bar at 20°C
0 - 9 psi at 68°F
—
functional model (can be specified)
—
measures medias with various viscosities
—
even under changing temperature conditions
